Description
Product Features:
-Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
-IP67 waterproof and dustproof grade
-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.
-With curved glass (with anti-fogging function)
-With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).
-Protection Class: IP67,can work underwater 1m position
Technical Data:
-Fixing dimension: 52mm(2")

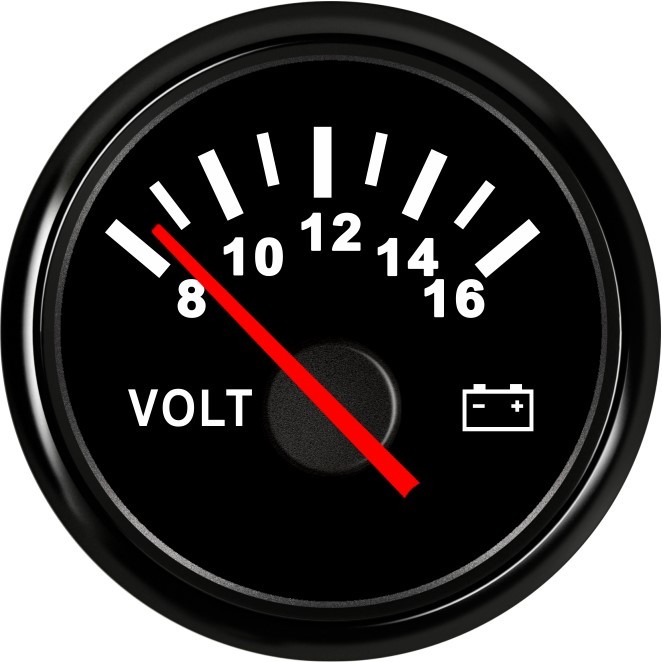

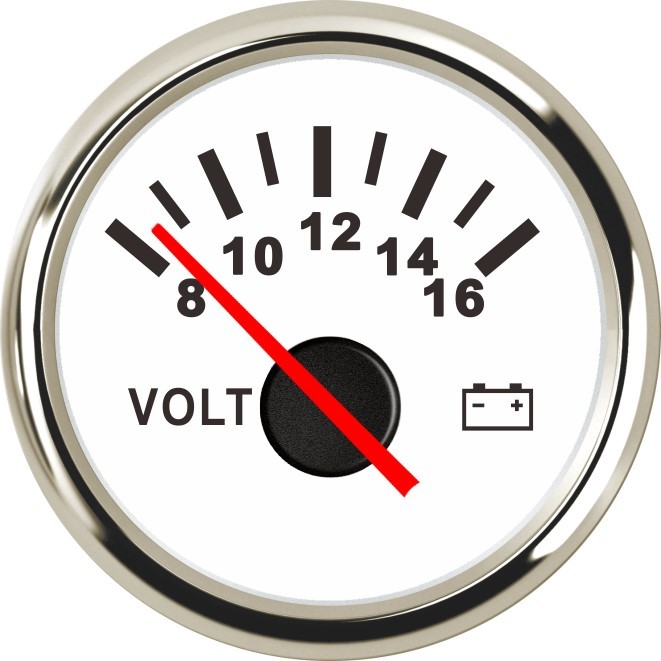

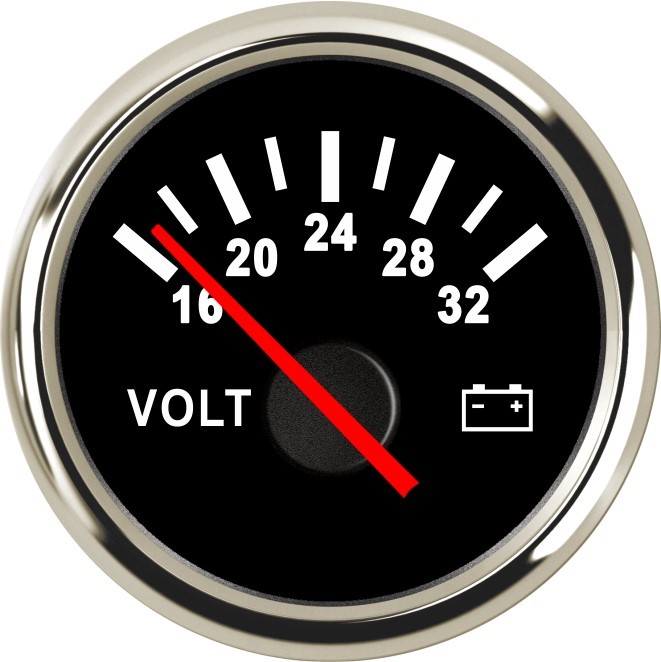

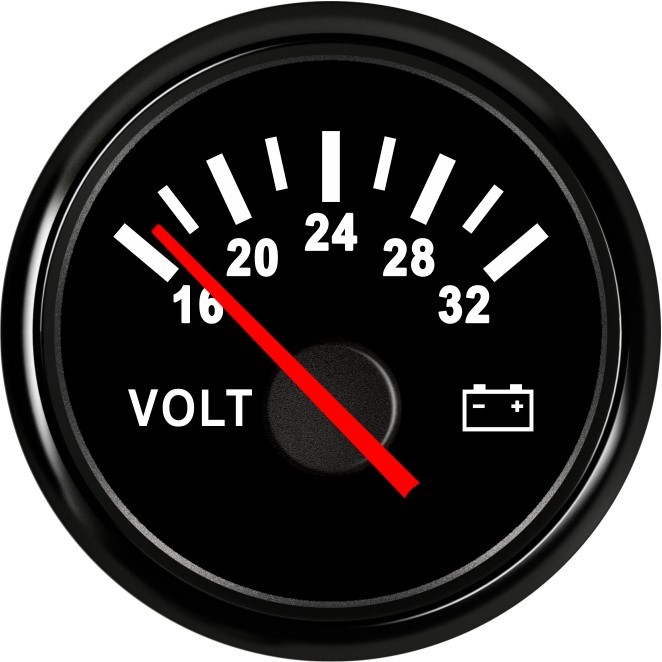

-Indicating Range: 8-16V/16-32V
-Working Voltage: 12V /24V
-Backlight: Red
-Operation mode: LCD display, stepper motor
Package Includes:
1x Voltmeter
1x Installation Instruction
