Description
Product Features:
-Suitable for all vessels, boats, yachts, etc..
-The signal comes directly from the satellite signal receiver(GPS Speed Sensor)
-The gauge has the advantages of high precision, quick location confirmation and short start up time.
-IP67 waterproof and dustproof grade
-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.
-With curved glass (with anti-fogging function)
-With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).
Technical Data:
-Fixing dimension: 85mm(3-3/8")
-Indicating Range: 0-35KNOTS 0-40MPH
-Tripmeter:0-999.9 NM
-Odometer:0-999999 NM
-COG(Course Over Ground):0-359
-Working current:≤100mA
-Operating temperature:-30℃~+75℃
-Storage temperature:-40℃~+85℃
-Backlight: Red Green Blue White Yellow Orange Purple Light Green, 8 colors available, you can press the button to choose anyone.
Functions:
-Needle shows current speed;
-Led window shows: TRIP/COG(choose anyone) and ODO
-TRIP---TRIP01(Default) one-trip mileage which will come back to 0 after power off,
TRIP02 one-trip mileage which accumulates after power off, but you can press “Set” button for 3-5 seconds to clear the data.
-COG---moving direction
-ODO---recording total mileages automatically and cannot be reset
-Operation mode: LCD display, stepper motor
Notes:for this speedometer,we suggest buyers to connect black gps antenna/sensor firstly and then connect power (can not connect power firstly and then connect gps antenna ),otherwise it will be easy to make gps mould damaged.
Package Includes:

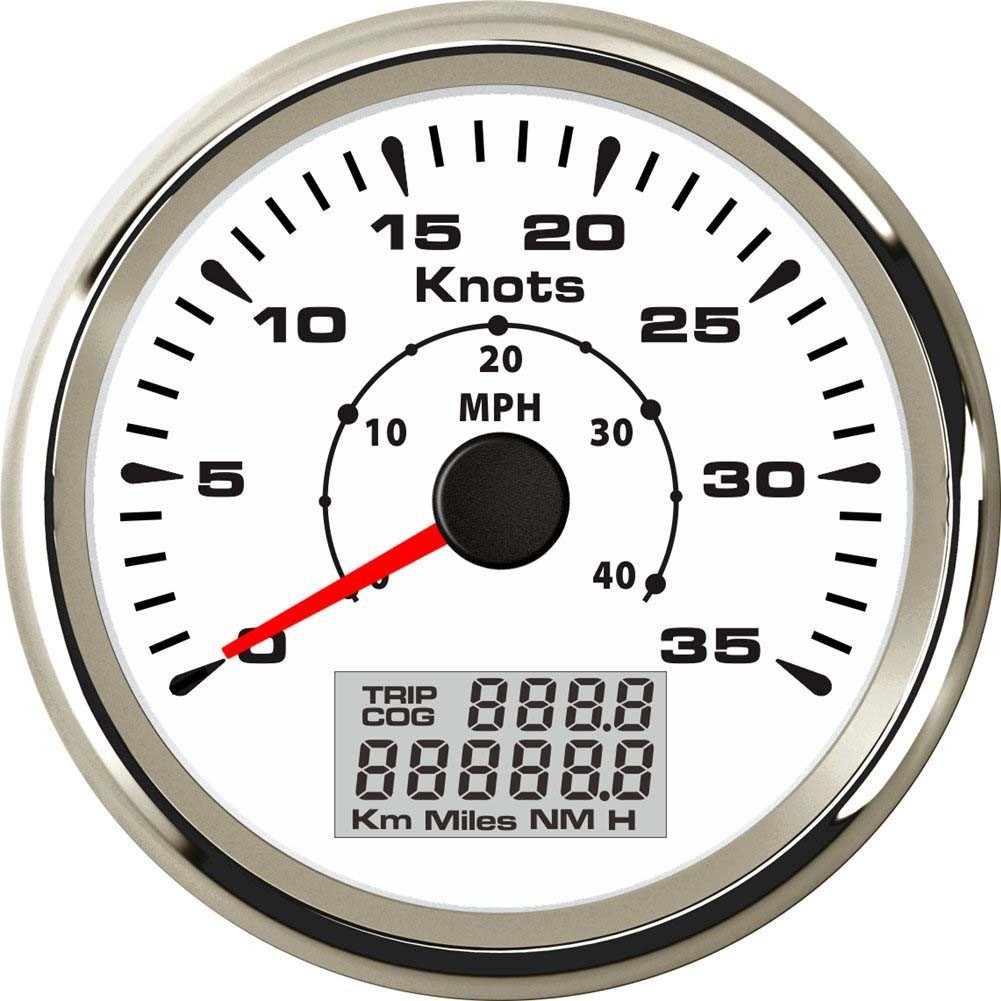

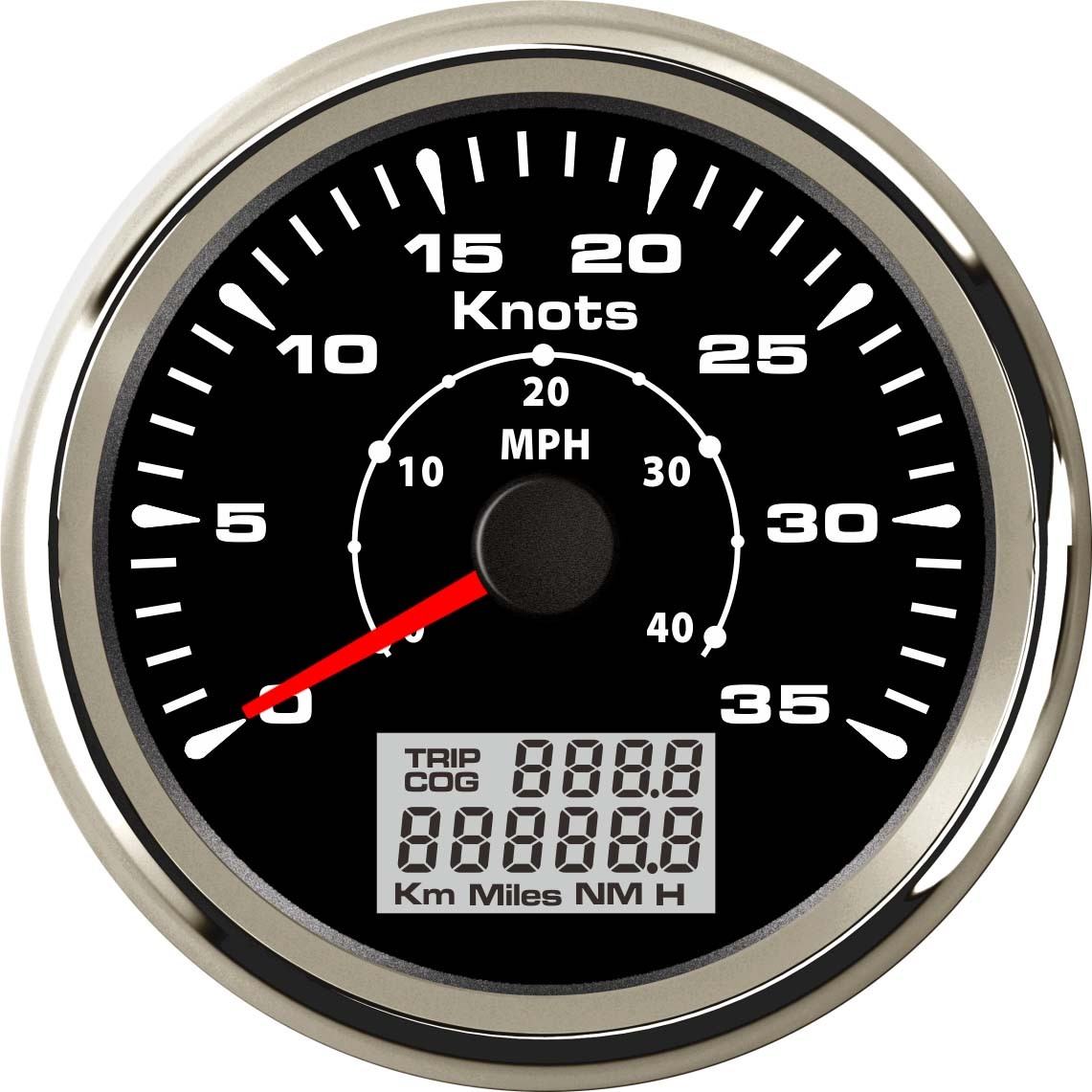

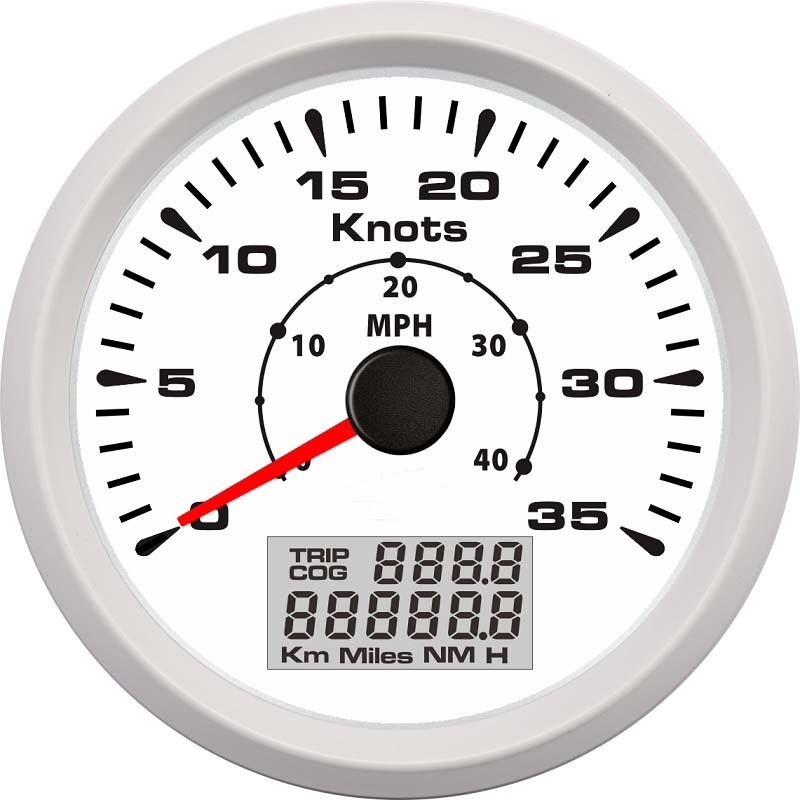

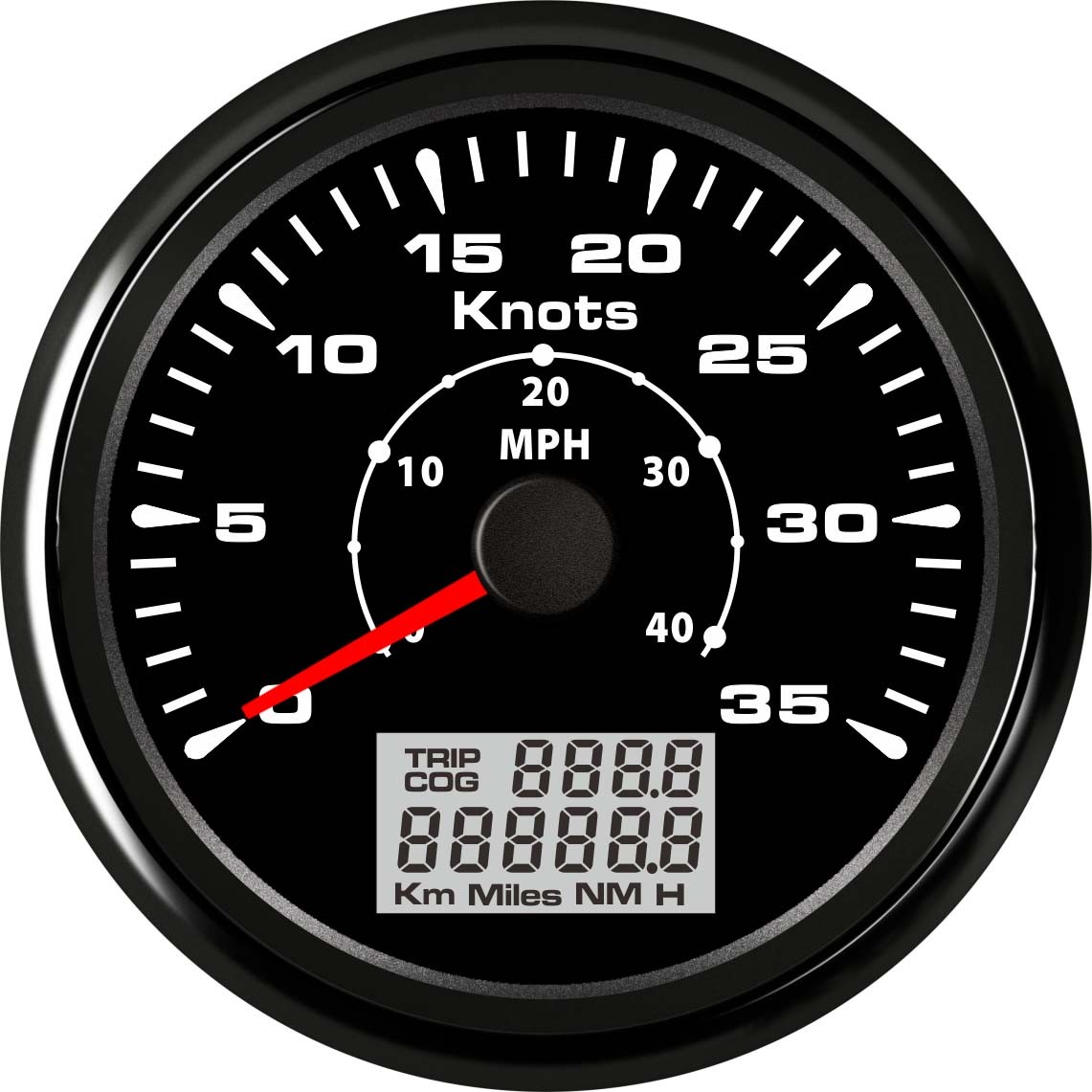

1x GPS speedometer
1x GPS Speed Sensor
1x Multi-plug socket
1x Installation Instruction
