Description
Specifications:

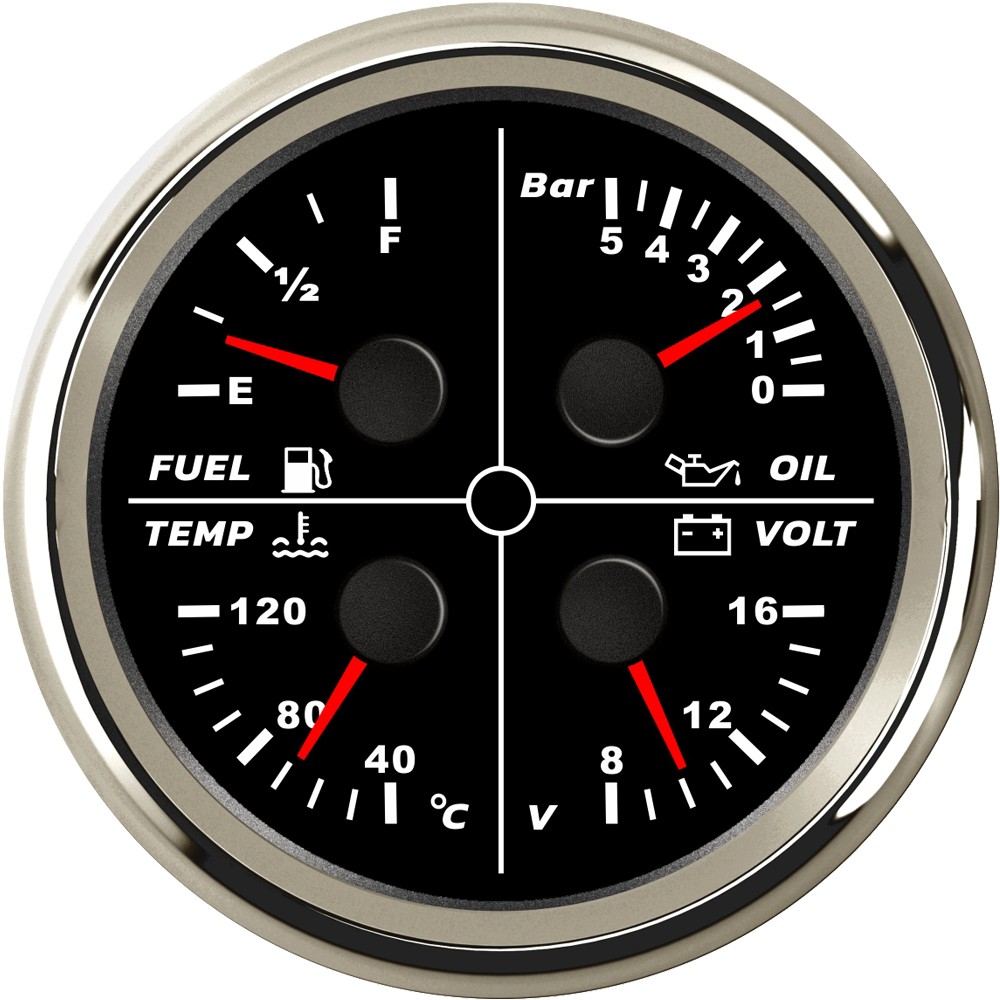

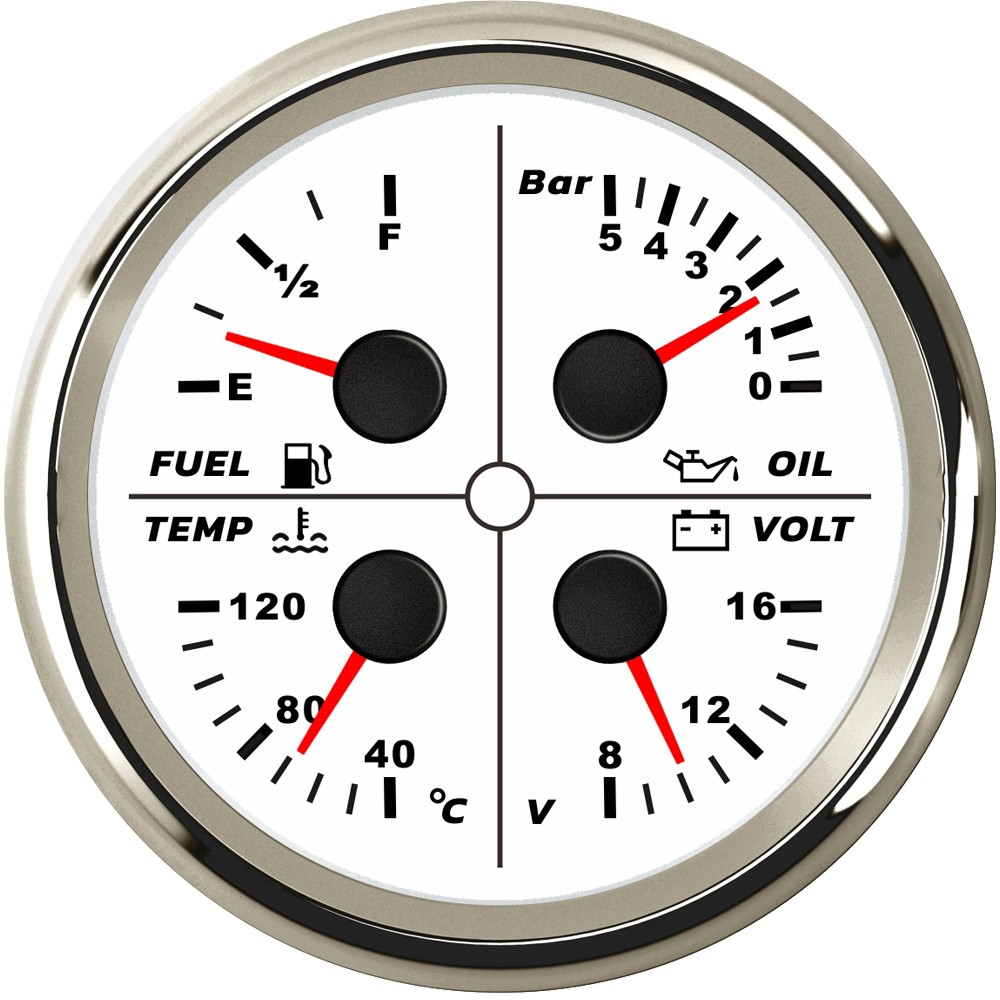

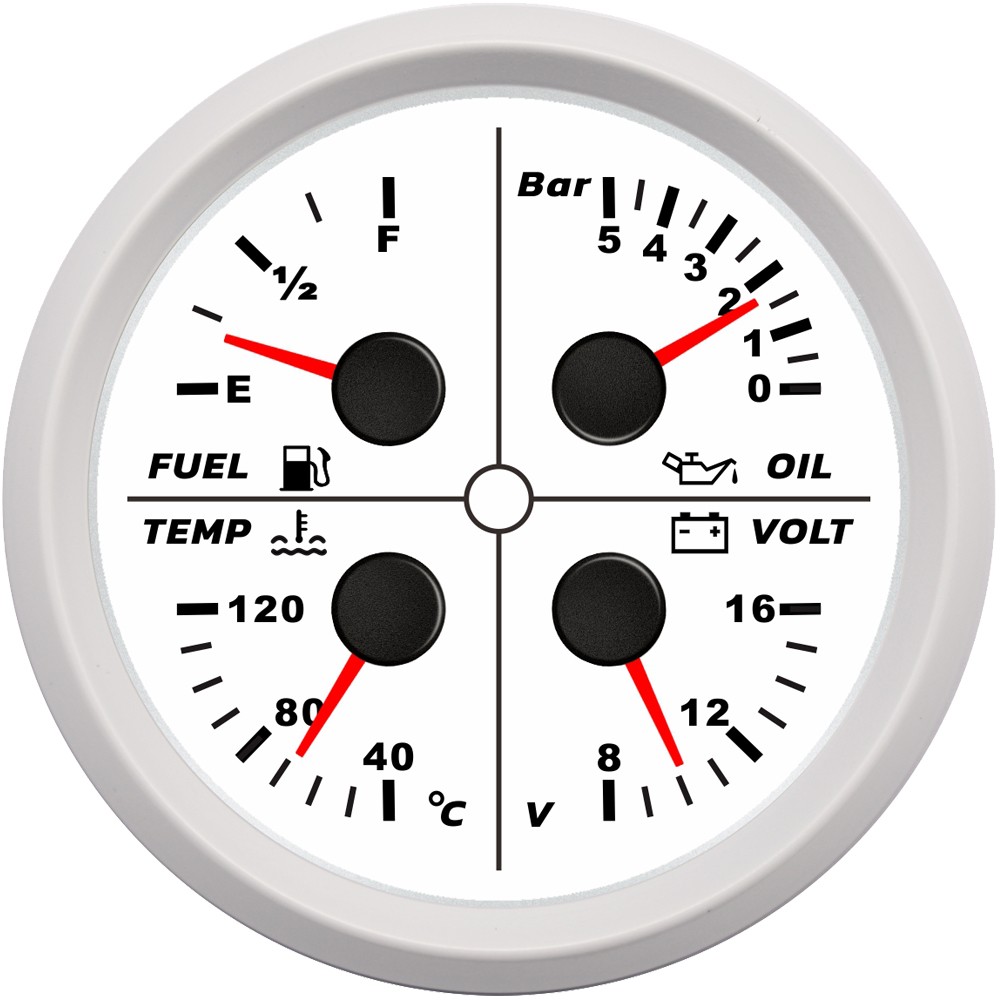

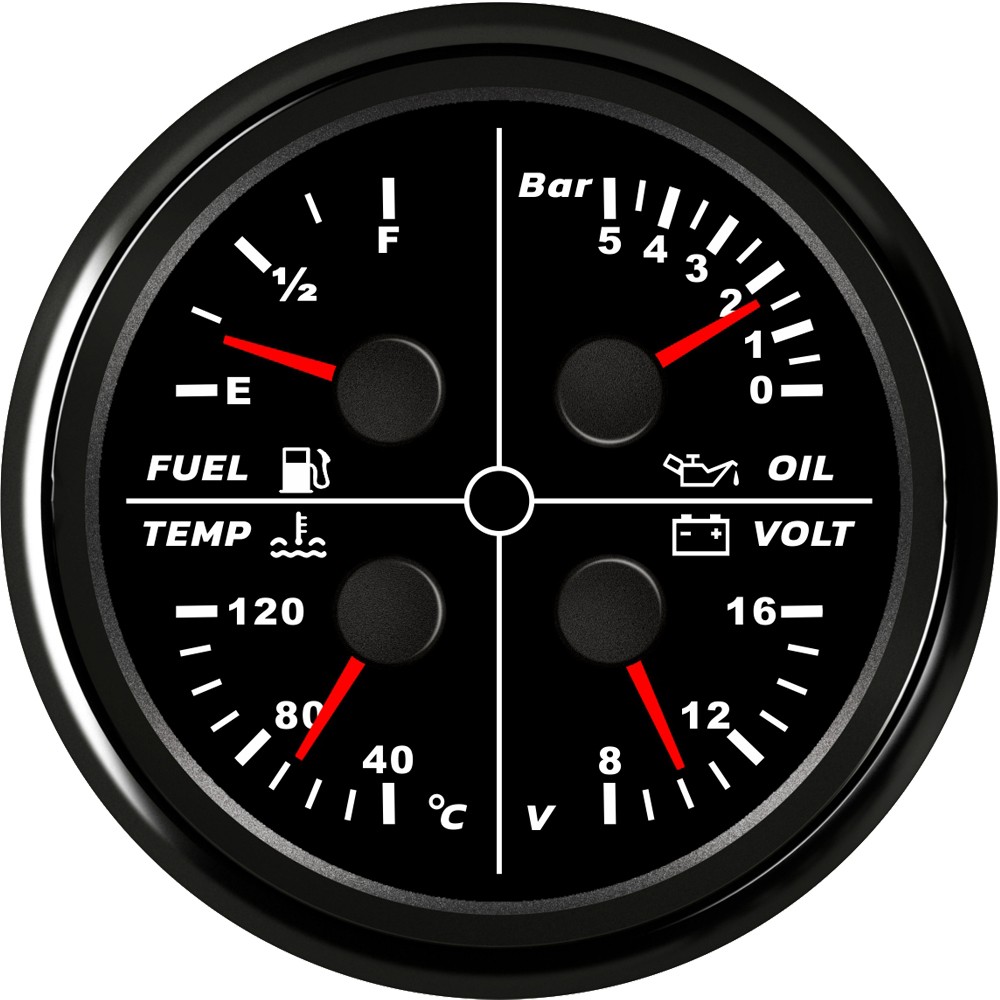

Name: 4 in 1 Multi-function gauge
Materials: stainless steel+nickel-plated plastic
Operating Voltage: 12V
Indicating range:
Fuel level: E-1/2-F
Water temp: 40-120℃
Oil pressure: 0-5BAR
Voltmeter: 8-16V
Input signal:
Fuel level: 0-190ohm,240-33ohm
Water temp: 320-22ohm
Oil pressure: 10-119ohm
Protection Class: IP67, can work underwater 1meter position
Sensors need to be purchased separately
Features:
Suitable for all kinds of cars, boats, motorcycles, with instructions of high precision, repeatability and versatility, reliability and stability, drive and control is relatively simple and so on. Using a stepper motor drive pointer, accurate display of the fuel level, water temp., oil pressure, voltage.
Instructions:
Before installation, firstly, to open a hole (Diameter: 85~87mm) of the panel, make sure there is a space with (70mm backyard of panel) as well, put the gauge in the hole. Using M4 nut and C type bracket to seal up the gauge.
Notes: Due to the manual measurement, there might be some error.
Connection:
Red--Battery(+8-16VDC)
Orange--Backlight(+)
Purple--Fuel signal
Yellow--Temp signal
White--Press. signal
Black--Ground(-)
Package Includes:
1 x 4 in 1 Multi-function gauge
1 x Cable
