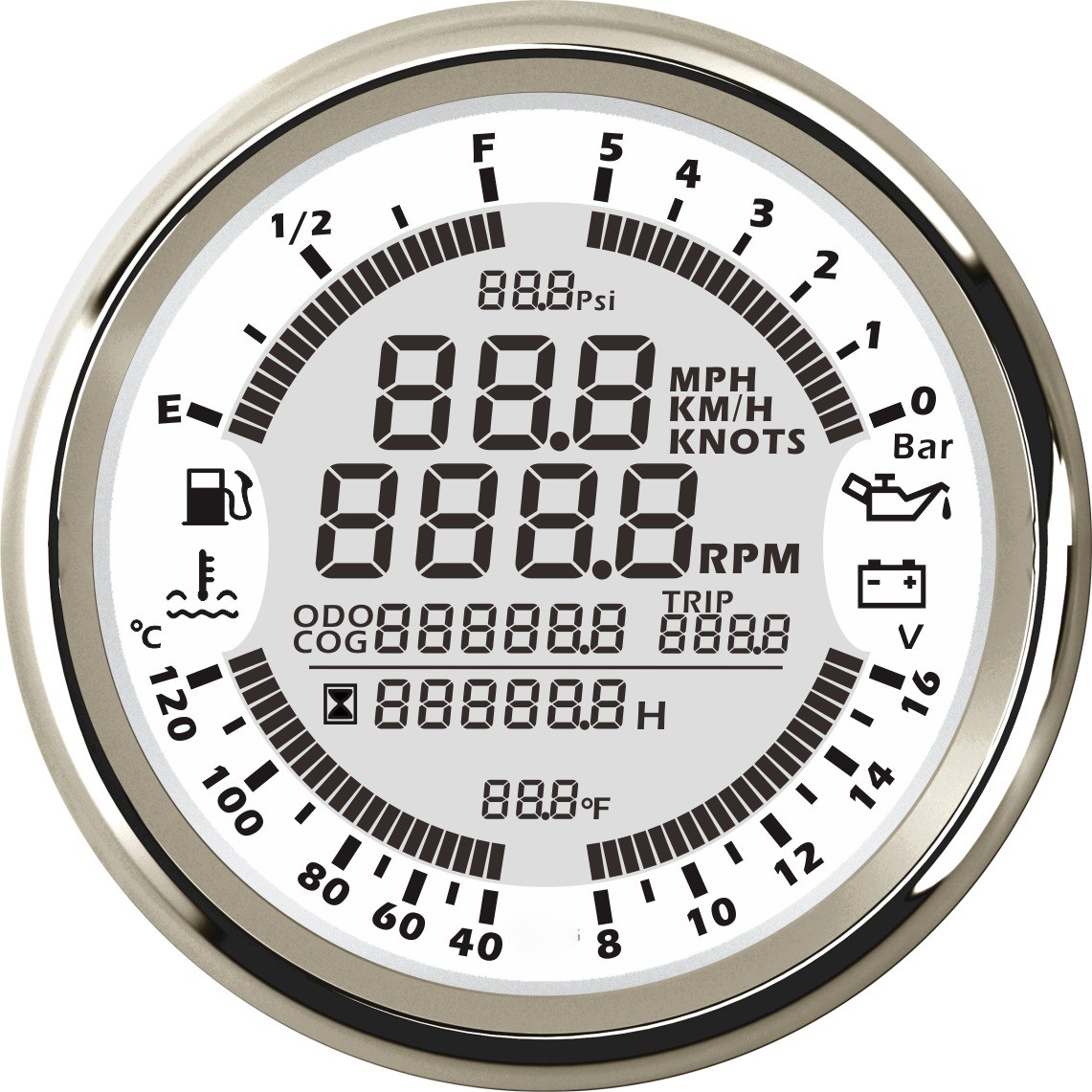

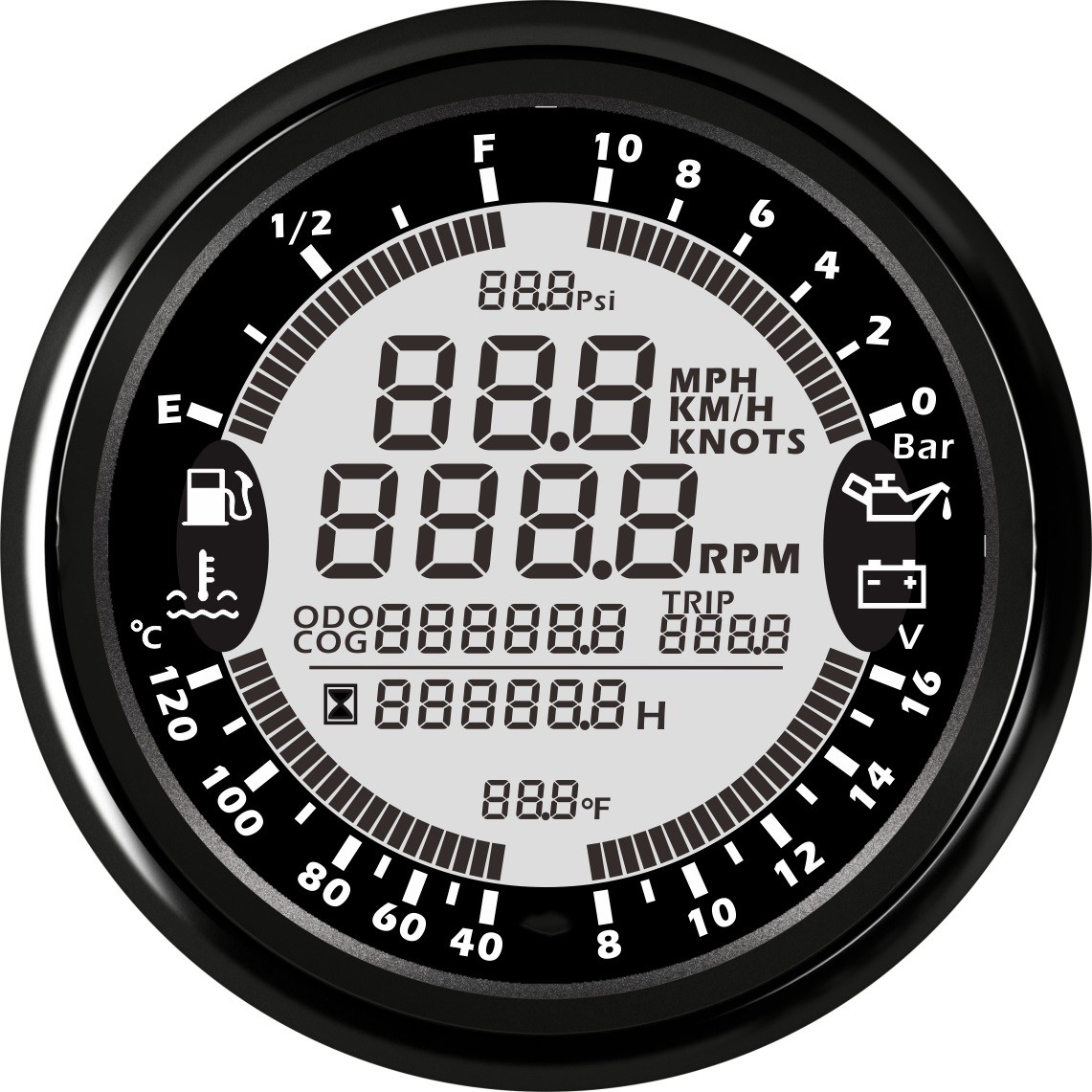

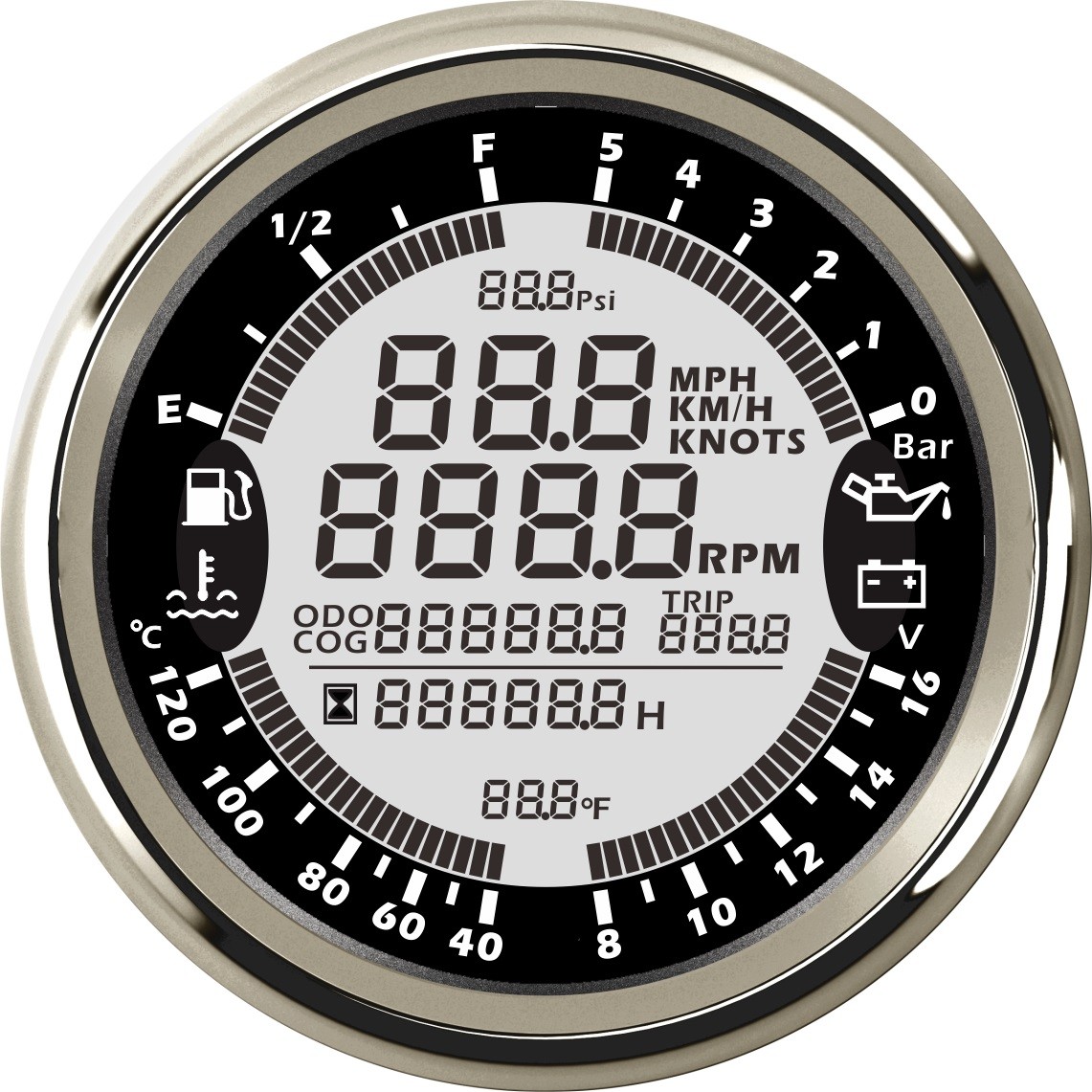

Description
Product Features:
-Suitable for all vehicles, boats and off-road vehicles
-The gauge has the advantages of high precision, quick location confirmation and short start up time.
-IP67 waterproof and dustproof grade
-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.
-With curved glass (with anti-fogging function)
-With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).
Technical Data:
-Fixing dimension: 85mm(3-3/8")
-Indicating Range: GPS Speedometer Tachometer Hour Meter Water Temp Fuel Level Oil Pressure Voltmeter
-Working Voltage: 8-16V
-Backlight: Red, Orange, Green, Yellow, Blue, Purple, White( you can press the button to change)
Functions:
-Tachometer RPM range:0-9999RPM
-Speedometer indication range:0-999(km/h MPH,knots available)
-Water Temp gauge indication range:40-120℃ (104-248)
-Pressure gauge indication range:0-5Bar (0-72.5Psi),0-10Bar (0-145Psi)
-Total mileage indication range:0-999999(km miles NM available)
-Hour meter indication range:0-99999.9
-Tripmeter indication range:0-999.9(km miles NM available)
-Working voltage:8-16VDC
-Operating current:<150mA
-Operating temperature:-30℃-75℃
-Storage temperature:-40℃-85℃
-Grade of protection:IP67
-Operation mode: LCD display, stepper motor
Package Includes:
1x Multi-functional Gauge
1x GPS Speed Sensor
1x Multi-plug socket
1x Installation Instruction
