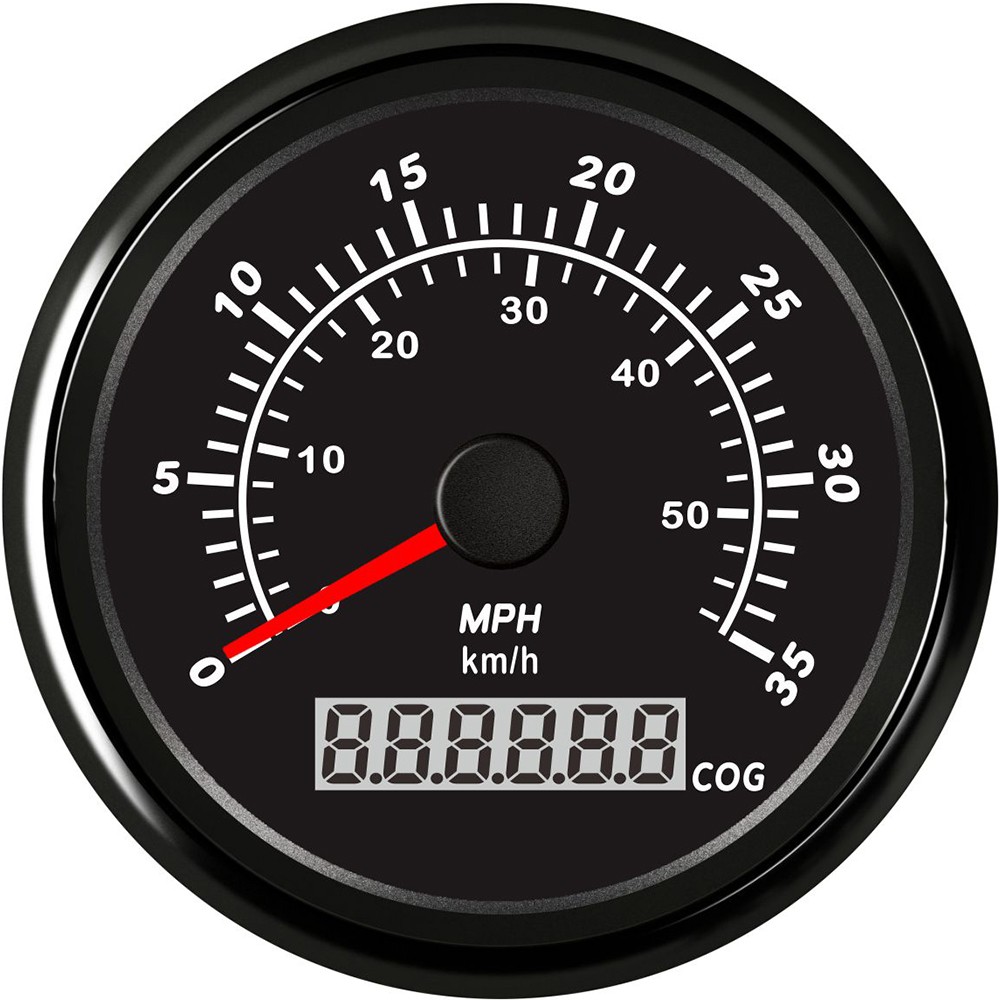

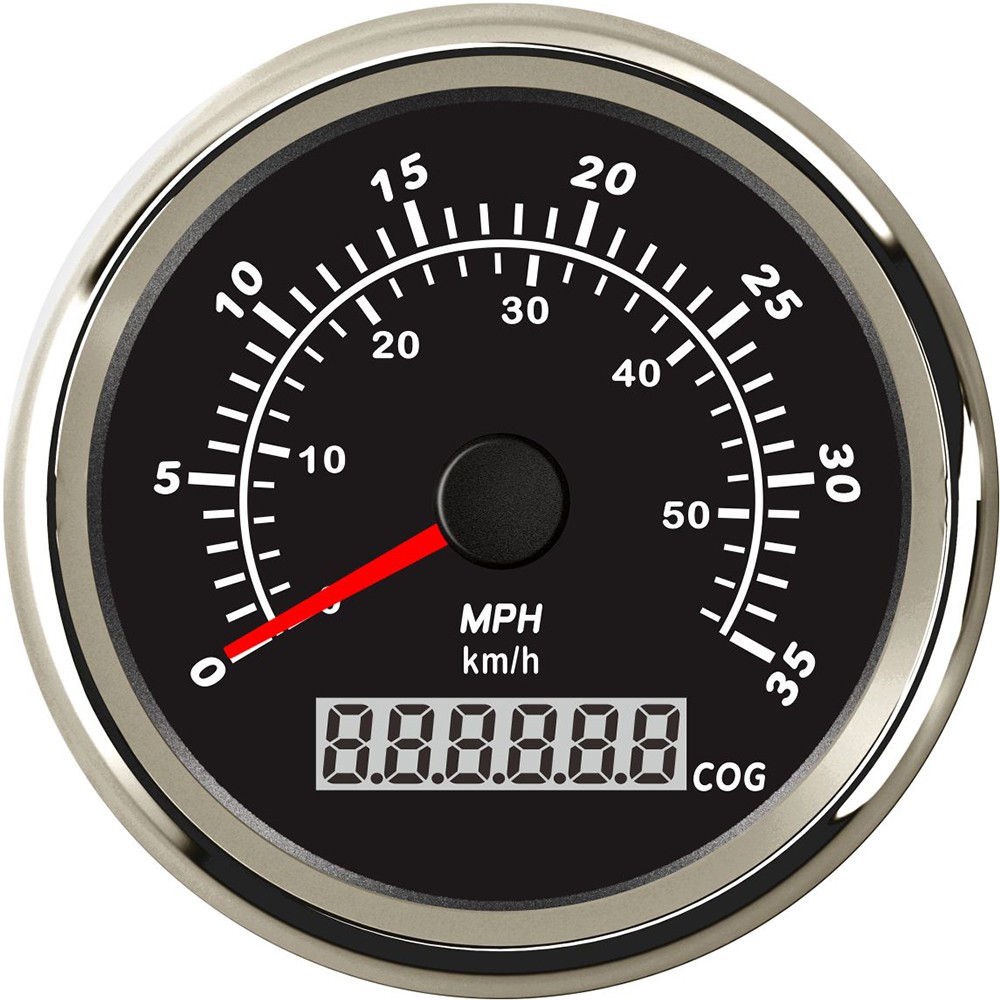

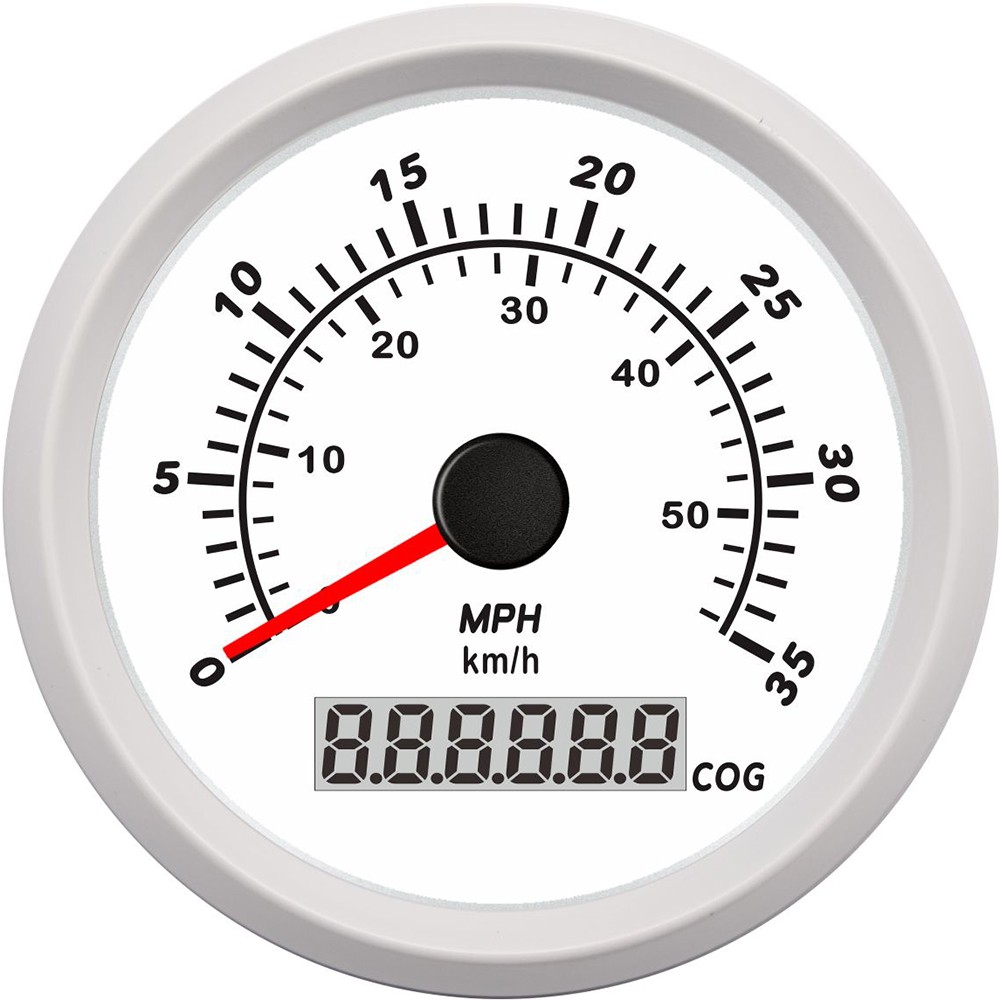

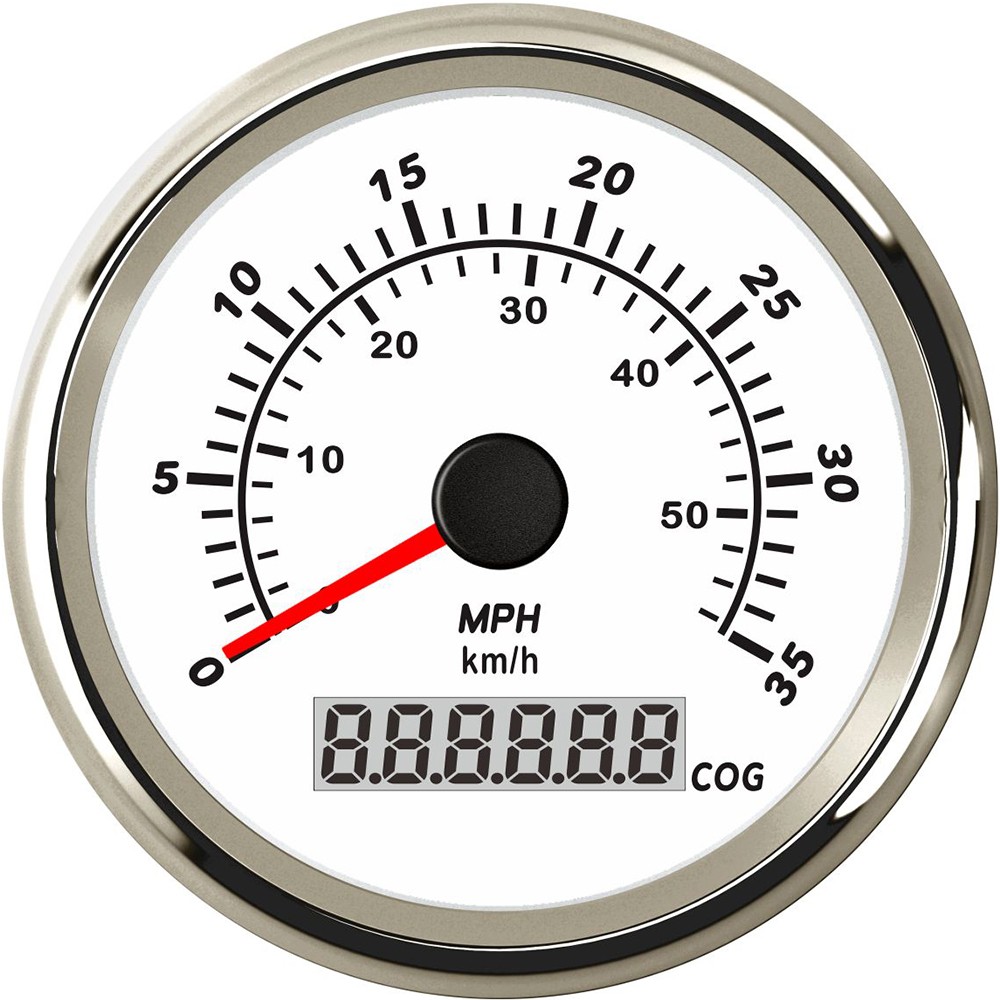

Description
Product Features:
-Suitable for all vessels, boats, yachts, etc..
-The signal comes directly from the satellite signal receiver(GPS Speed Sensor)
-The gauge has the advantages of high precision, quick location confirmation and short start up time.
-IP67 waterproof and dustproof grade
-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.
-With curved glass (with anti-fogging function)
-With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).
Technical Data:
-Fixing dimension: 85mm(3-3/8 inches)
-Indicating Range: 0-35MPH 0-60KM/H
-COG(Course Over Ground):0-359
-Working Voltage: 9-32VDC(12VDC/24VDC)
-Backlight: Red
-Functions: current speed and course(not odometer or trip meter)
-Connection: Blue wire--Negative/Ground, Red wire--Positive, Orange wire--Positive(lighting wire)
-This GPS Speedometer is complete unit, can work directly with gps sensor together, not need other sensor cables.
-After connection, it takes about 30 seconds to get signal in the first time, but less than 3 seconds after that. It gets quicker under a clear view of the sky. Sometimes if signal is missing, pls. reconnect all wires and restart it.
-Operation mode: LCD display, stepper motor
Package Includes:
1x GPS speedometer
1x GPS Speed Sensor
1x Multi-plug socket
