Description
Specification:
- Backlight : 7 backlights (red, green, blue, white, yellow, cyan, purple)
- Voltage: 12V / 24V
- Oil pressure: 0.0-10.0bar/0-145Psi adjustable
- Water temperature: 25-120℃/77-248℉ adjustable
- Engine accumulated hours: 0.0-99999.9H
- Engine speed: 0-3000RPM,0-4000RPM,0-6000RPM,0-7000RPM,0-8000RPM

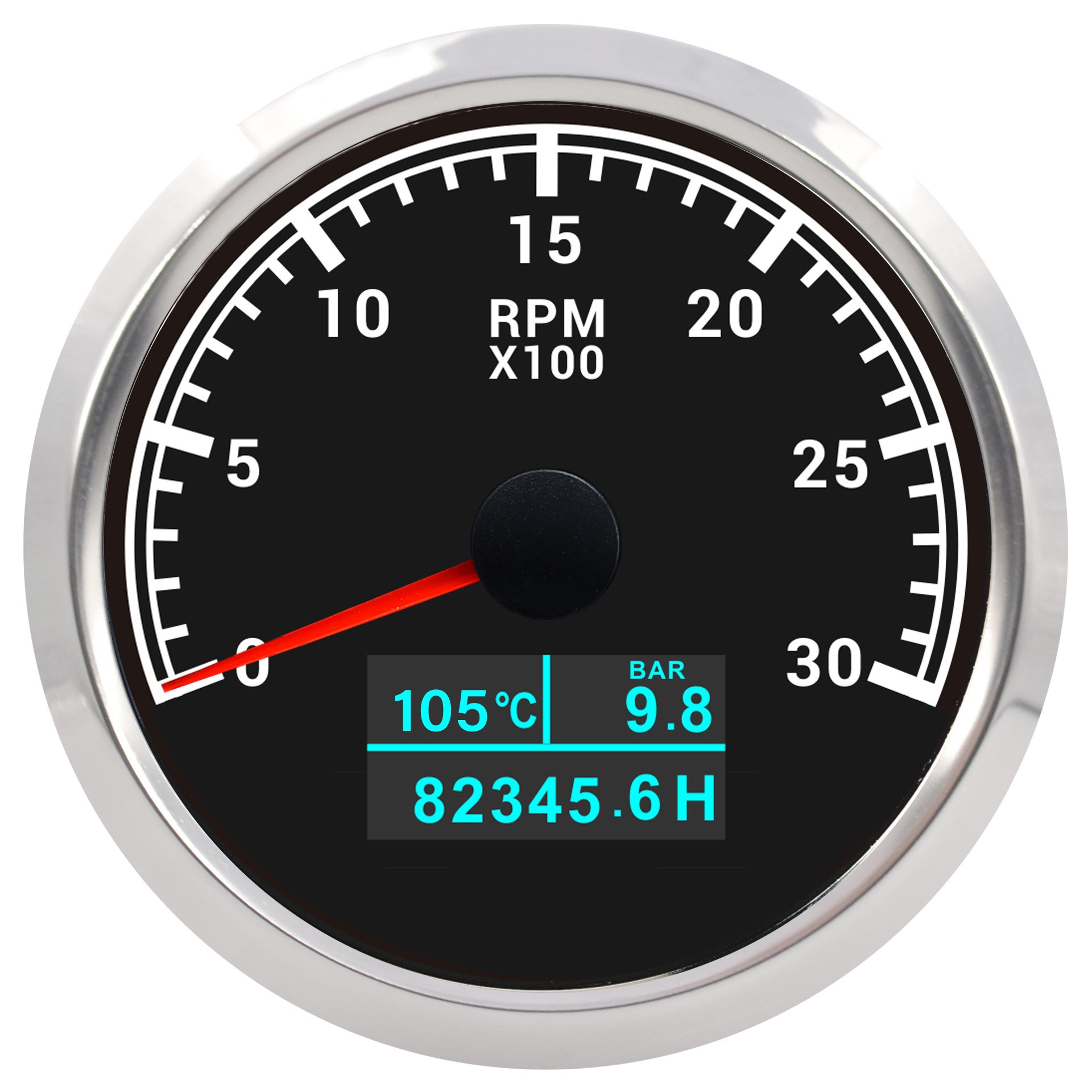

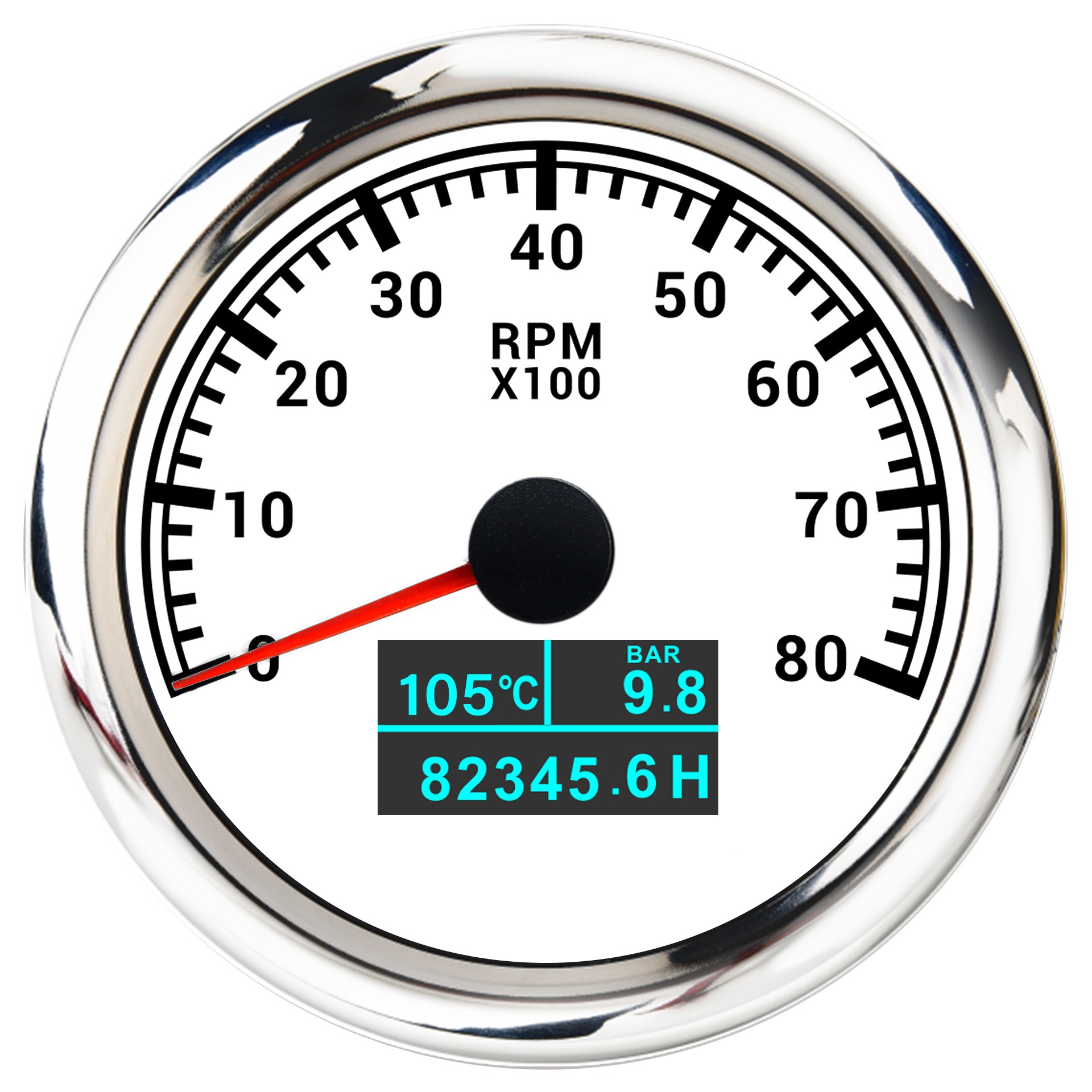

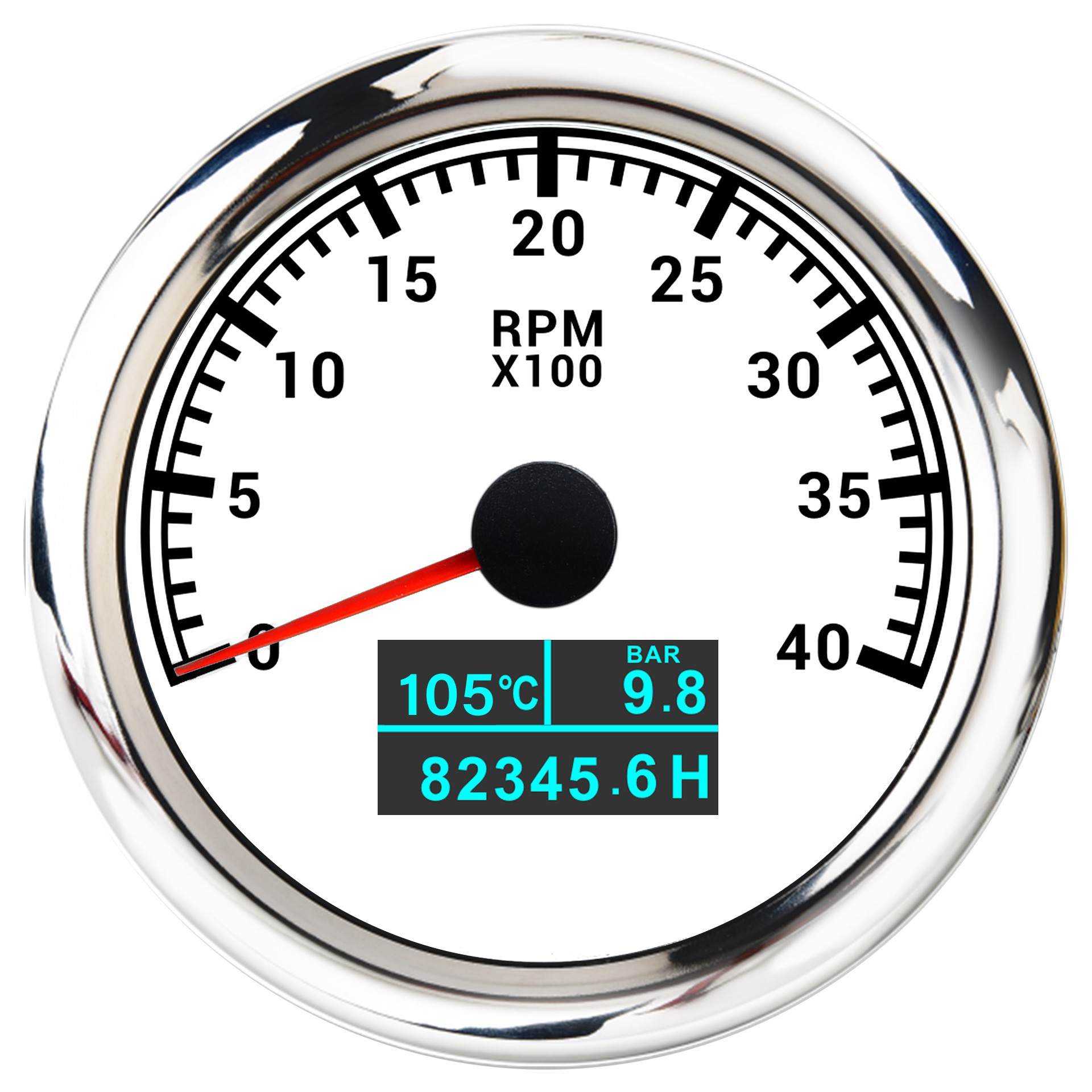

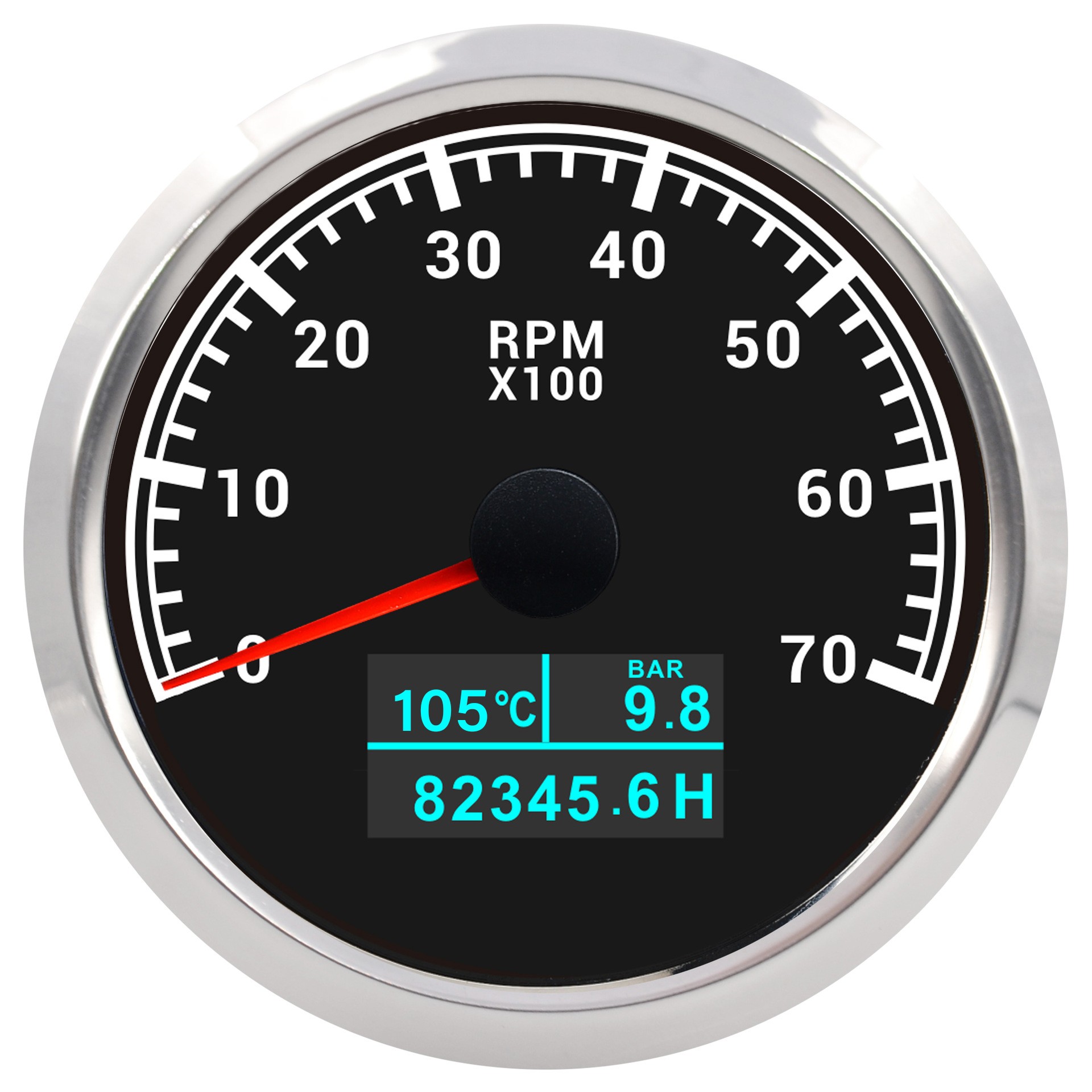

- Tachometer fit for Car /Truck/ Boat /Diesel Generator Engine /Gasoline Engine
Input parameters:
- Adjustable range of tachometer speed ratio: 1.0-360.0
- Pressure sensor parameters: 10-184Ω
- Cooling water temperature parameter: 301-22Ω
- Working voltage: 9-32 VDC
- Working currents: <120mA
- Working temperature: -30-70℃
- Storage temperature: -40-85℃
- Waterproof rating: IP67
Package include:
1x 3 in 1 Gauge
1x Multi-plug socket
1x Installation Instruction
