Description

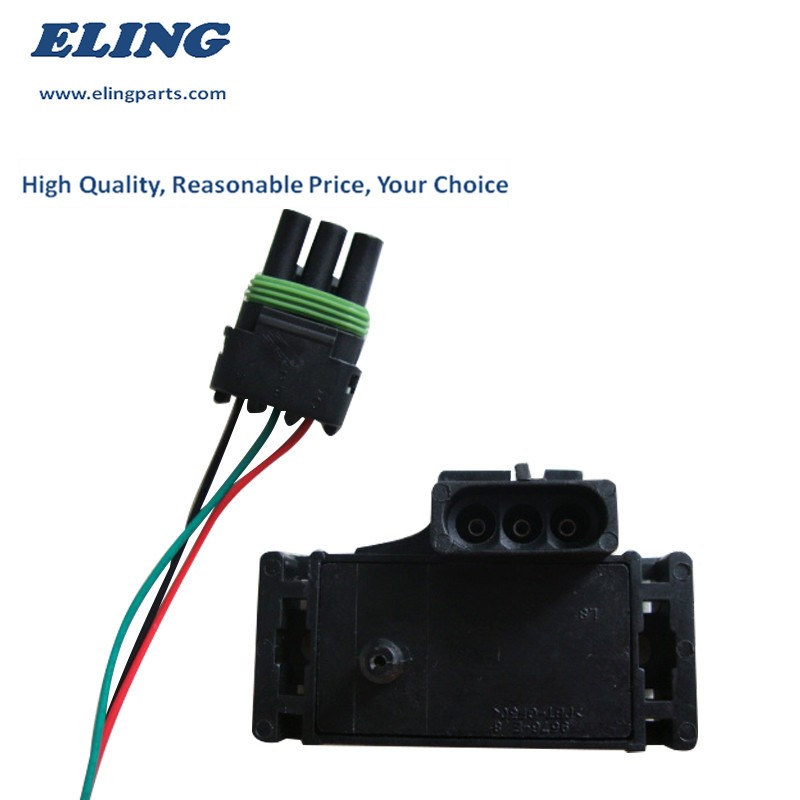

MAP SENSOR
Pressure range 40-304KPA (3 Bar)
Output voltage 0.619-4.818VDC
Supply voltage 5.0+/-0.5VDC
GM Part No.12223861
MAP SENSOR
Pressure range 40-304KPA (3 Bar)
Output voltage 0.619-4.818VDC
Supply voltage 5.0+/-0.5VDC
GENERAL 16172899, 16040749
Delphi 12223861
MOTORS 9132374

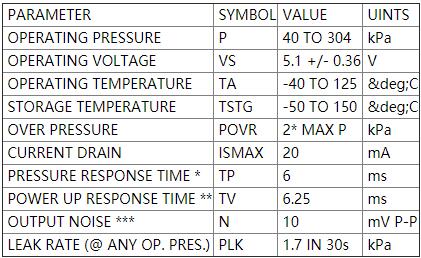

RATINGS
* 90% OF STEADY STATE RESPONSE TO CHANGE TO ANY OPERATING PRESSURE FROM ANY OTHER OPERATING PRESSURE.
** APPLICATION OF 4.74V PART MUST STABILIZE WITHIN +/-0.2 kPa.
*** OUTPUT NOISE DEFINED AS AC VOLTAGE > 10 KHz.
TEMPERATURE AT 25°C & V SUPPLY=5.1V
