Description
The KMG-30K/KMG-30KP gauge is a multifunctional digital instrument developed specifically for boats, yachts and marine applications.
The instrument integrates major functions such as fuel level, oil pressure, tachometer, speedometer, oil and water temperature all in one device.
The robust and compact design allow users to have more important information available at the same time.

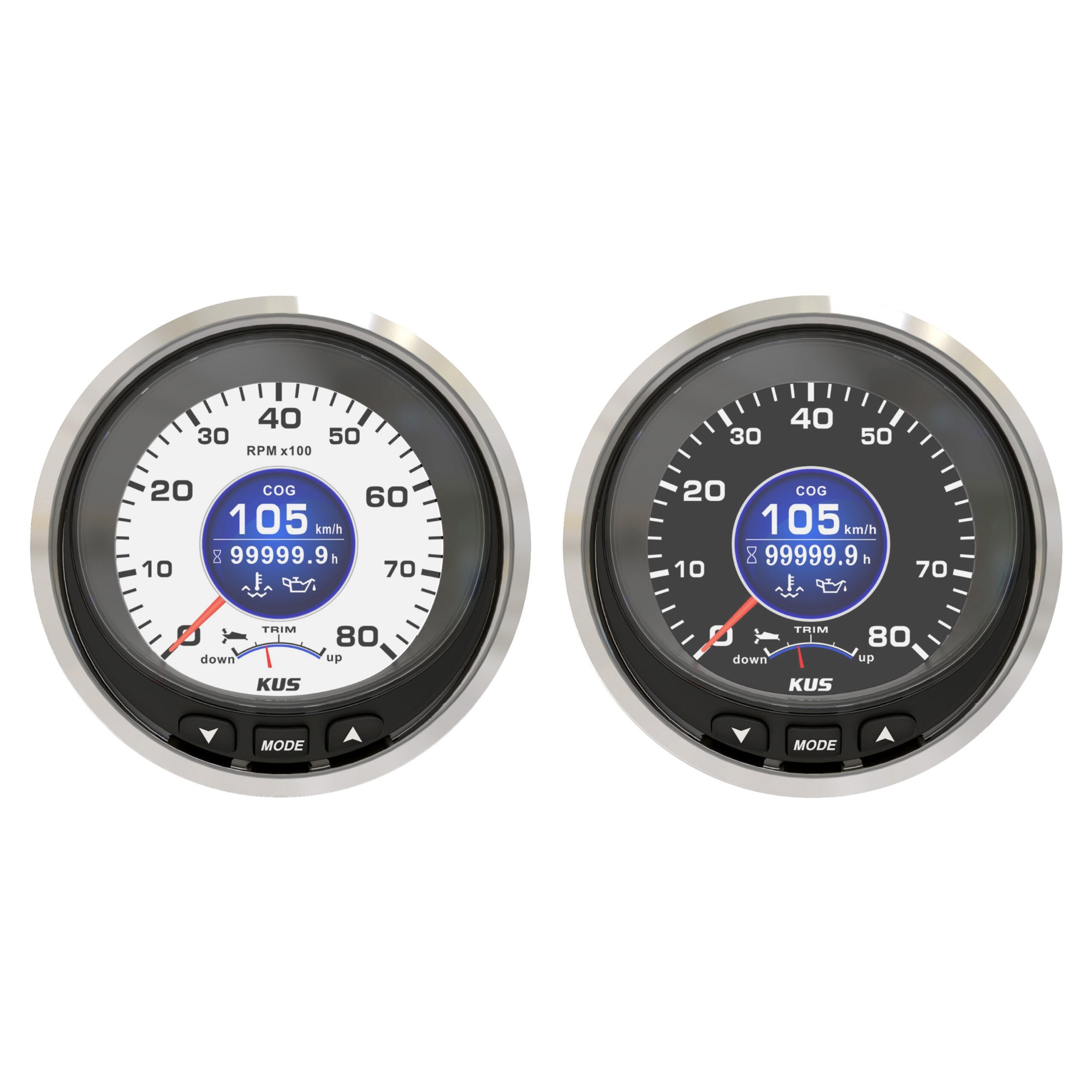

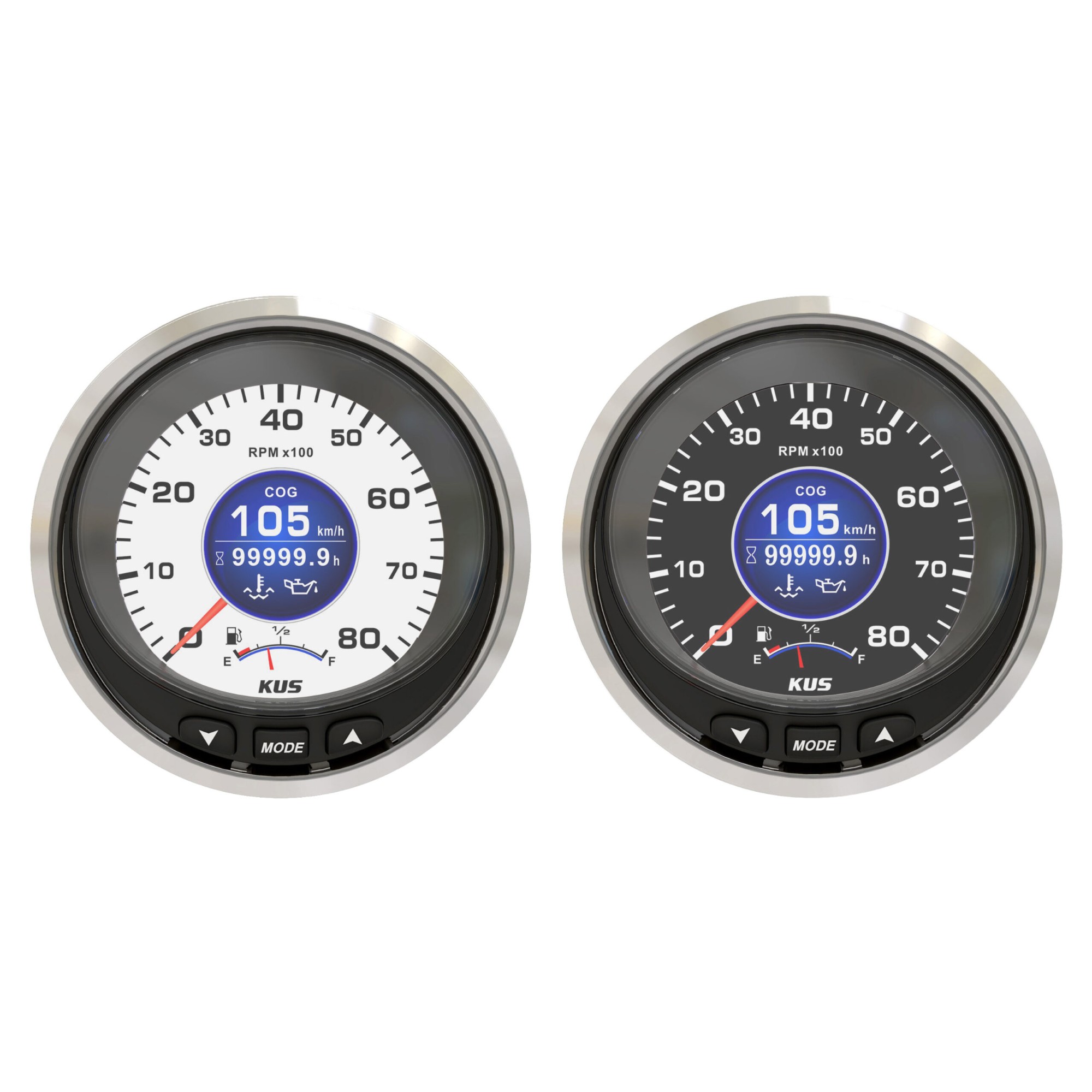

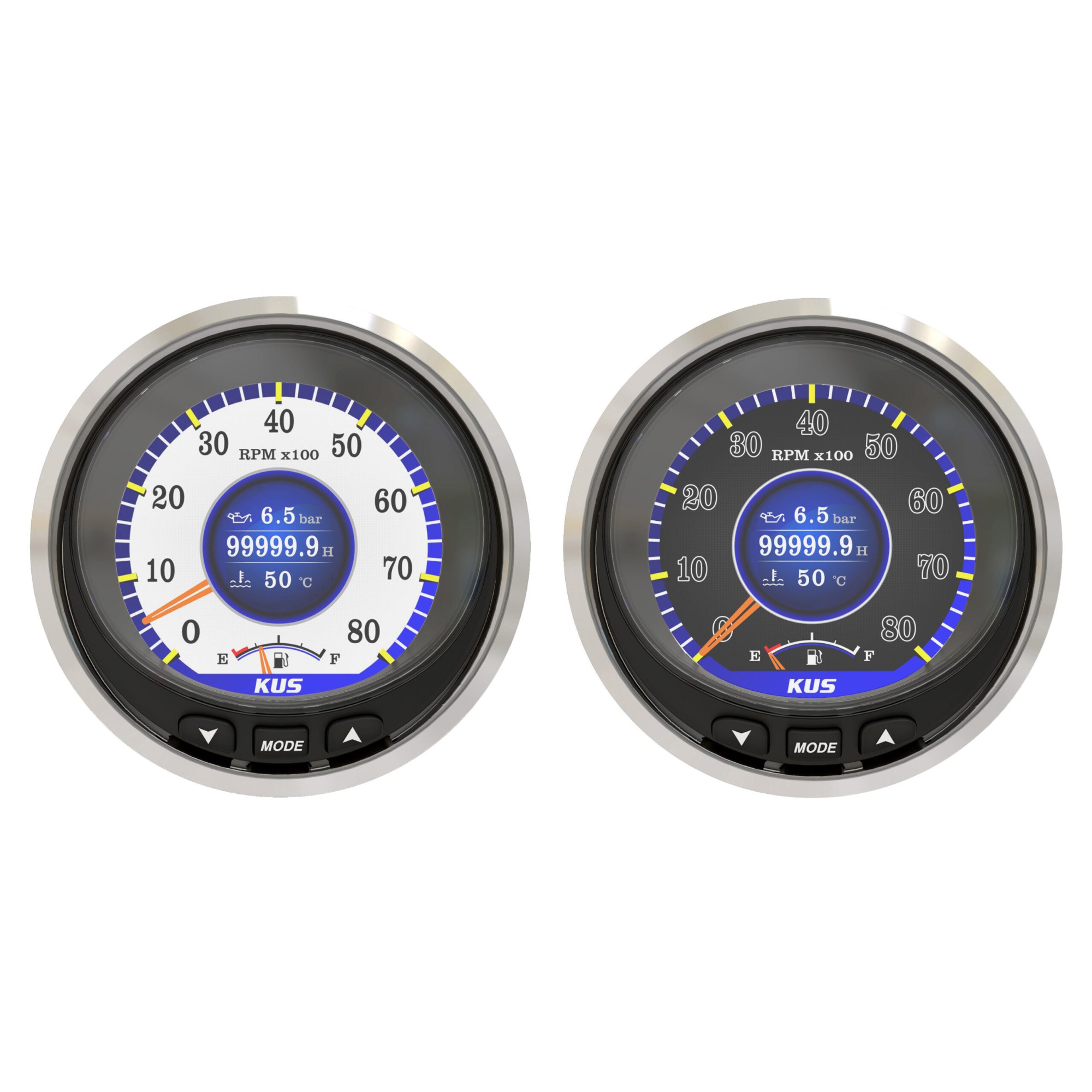

The instrument comes in a stainless-steel cover with a black dial and two styles of display interfaces, touch screen or button, to meet your different requirements.
The connection of KMG-30K/KMG-30KP can be altered by both CAN bus and analog signal input according to customer requirements; displaying data and instances can be set accordingly as well.
The unit is compatible with J1939 and NMEA 2000 systems.
Product Features:
Compatible with J1939 & NMEA2000, and supporting 4 different of Analog signals input ( tacho sensor, fuel, water temperature and oil pressure sensor)
For NMEA2000, the instance number needs to be set up on the gauge
Supports night cruise mode and DM1 Diagnostics
Backlight Brightness: 10%~100%
IP67 protection rating
KMG30K (without GPS Speedometer)
KMG30KP(with GPS Speedometer)
Product Specifications
Model: KMG
Dimension: 76mm / 3 inches
Mounting Dimension: 100mm / 4 inches
Working Voltage: 9-32V DC
Working Current: ≤170mA (12V)
Resolution: 432 x 432 pixels
Working Temperature: -30℃ to +85℃ / -22℉ to 185℉
Storage Temperature: -30℃ to +85℃ / -22℉ to 185℉
Product Data:
Speed display:0-999km/h,mph,knots
Tachometer:0-4000RPM;0-6000RPM;0-8000RPM
Speed ratio:0.5-250
Hourmeter:0-99999.9 H
Fuel Level:0-100%/E-F,Signal:0-190ohm/240-33ohm or customized
Water Temperature:40-120℃/100-250℉,Signal:301-23ohm or customized
Oil Pressure:0-10Bar/0-145Psi,Signal:10-185ohm or customized
Alarm Function : Fuel (10%), Water Temperature (95℃/203℉), Oil Pressure (0.7bar/10.15psi), can be customized
Package includes:
Multifunction gauge
1M 5 cores CAN cable
1M 6 cores & 1M 8 cores analog cables
