Description
Key Features:

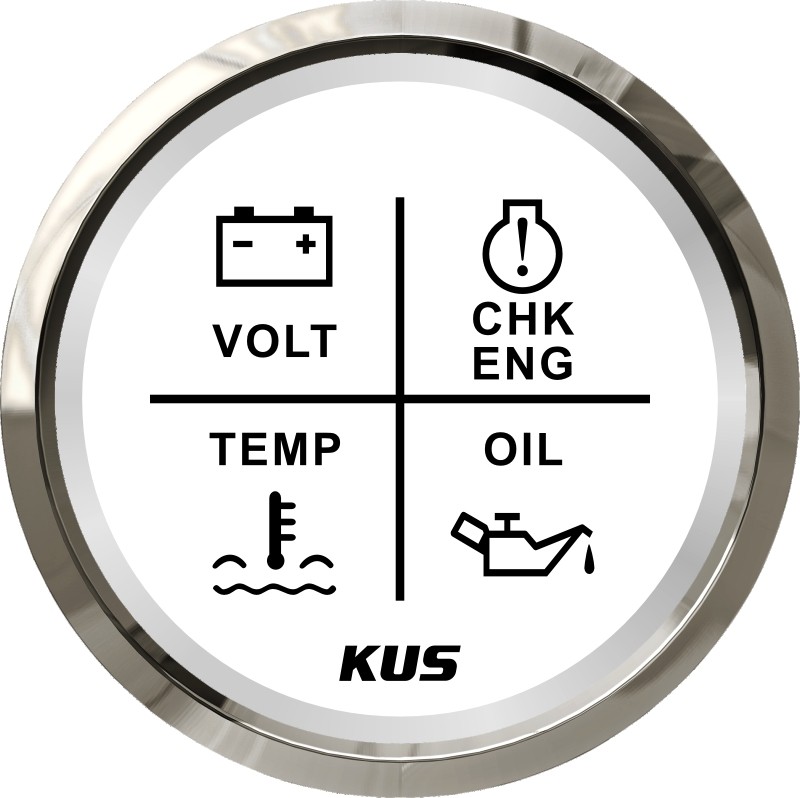

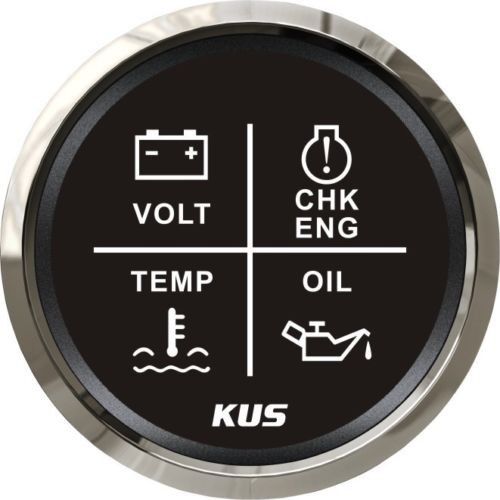

-Display the alarm of oil pressure, water temp, volt and engine CHK.
-Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
-Operating temperature: -40°C ~+85°C
-Protection rank : IP67.
Technical Data:
-Fixing dimension: 52mm(2")
-Alarm: volt, oil pressure, water temp, engine
-Working Voltage: 12V/24V
-Choice between red and yellow backlight
-Operation mode: LCD display, stepper motor
-Protection grade is IP67, the whole body is completely waterproof;
-Excellent anti-fogging function;
-316 Stainless steel bezel with curved glass;
-Convenient Installation by multi-plug socket connecting way;
Package Includes:
1x 4LED Alarm Gauge
1x Multi-plug socket
1x Installation Instruction
