Description
Function:
1.Suitable for all vehicles and off-road vehicles
2.The speedometer signal comes directly from the satellite signal receiver (GPS antenna), no other speed sensor required. The tachometer must receive a speed signal. The fuel level gauge must receive a fuel level signal
3. The measuring device offers the advantages of high precision, fast location confirmation and short start-up time.
4.IP67 waterproof and dustproof
5.Reverse polarity protection and anti-fog performance
6.No stationary drift
7.Stepper motors are used for the full range of pedometers, great function with lower power consumption, longer lifespan, higher precision etc.
Specification:
-Mounting dimension: 110mm

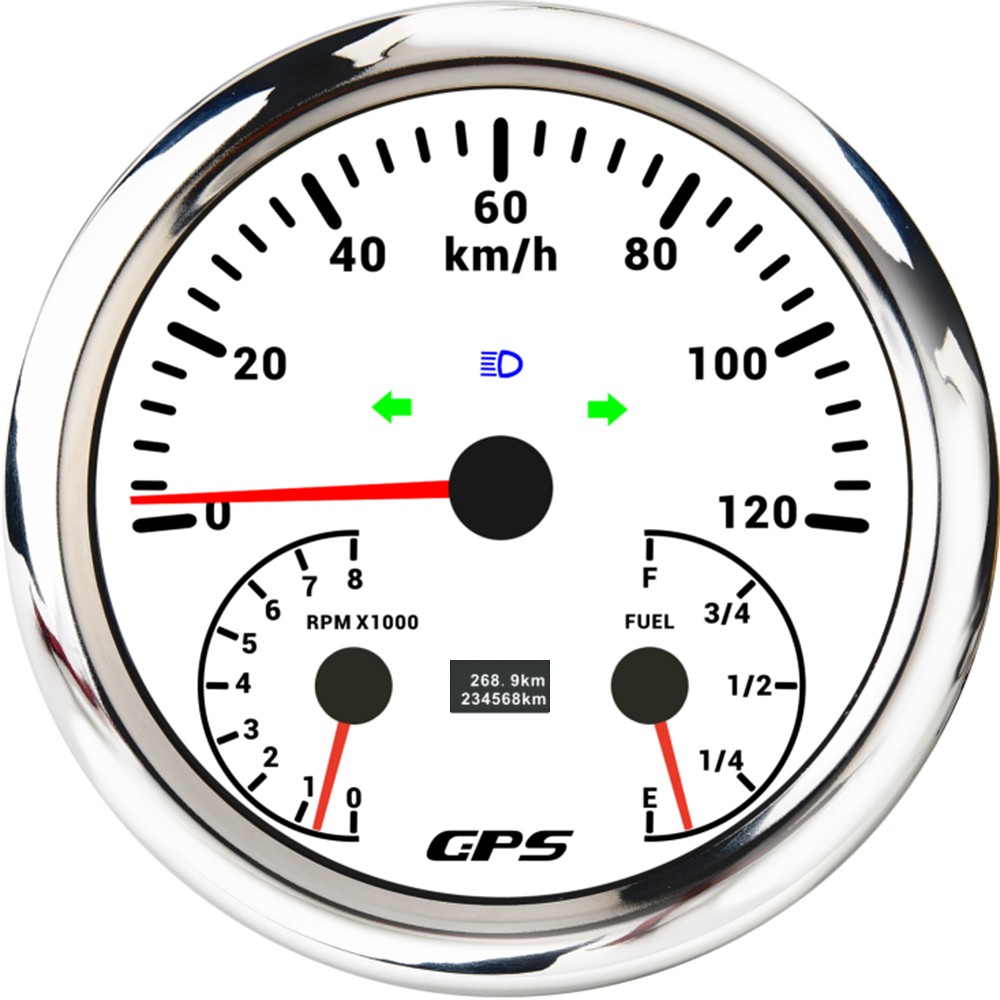

-Display range: 0-120 km/h and 0-8000 rpm and E- 1/4-1/2-3/4-F
0-200km/h and 0-8000 rpm and E- 1/4-1/2-3/4-F

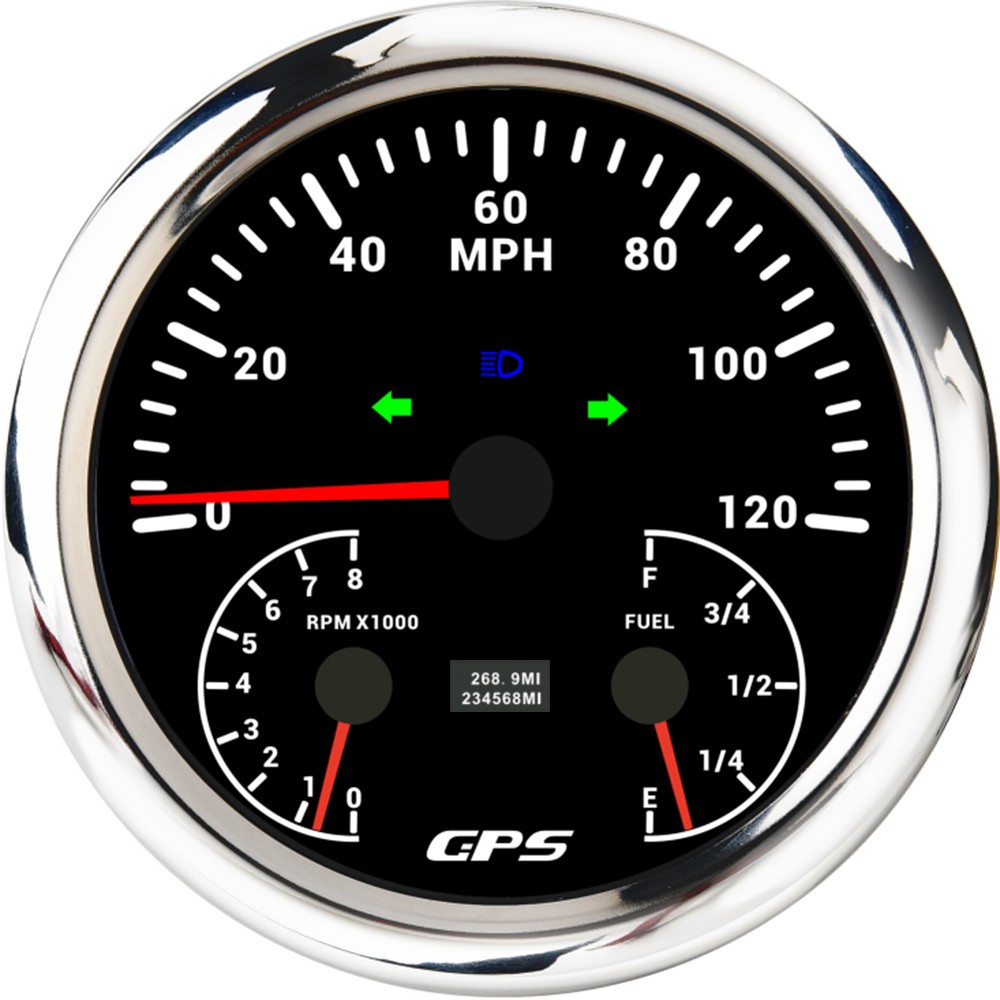

0-120mph and 0-8000 rpm and E- 1/4-1/2-3/4-F

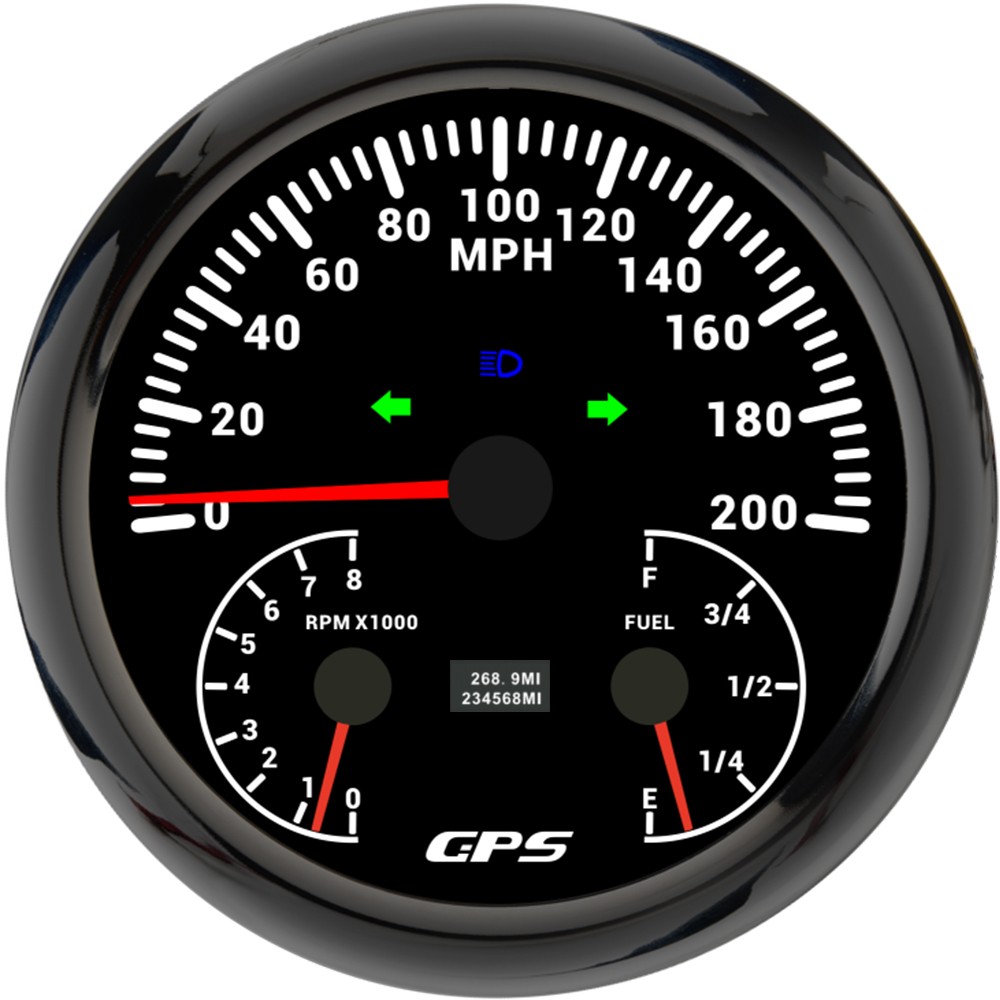

0-200mph and 0-8000 rpm and E- 1/4-1/2-3/4-F
- Working voltage: 12V/24V
- Fuel level indicator signal: 10-180 ohm, 240-33 ohm, 0-190 ohm, 0-90 Ohm, 240-30 Ohm
- Trip odometer range: 0-999.9 km,0-999.9miles
-ODO mileage range: 0-999999 km,0-999999miles
-Speed ratio: 1.0-360
-Over speed buzzer alarm (value adjustable)
-Indicator light: LEFT, HIGH BEAM, RIGHT

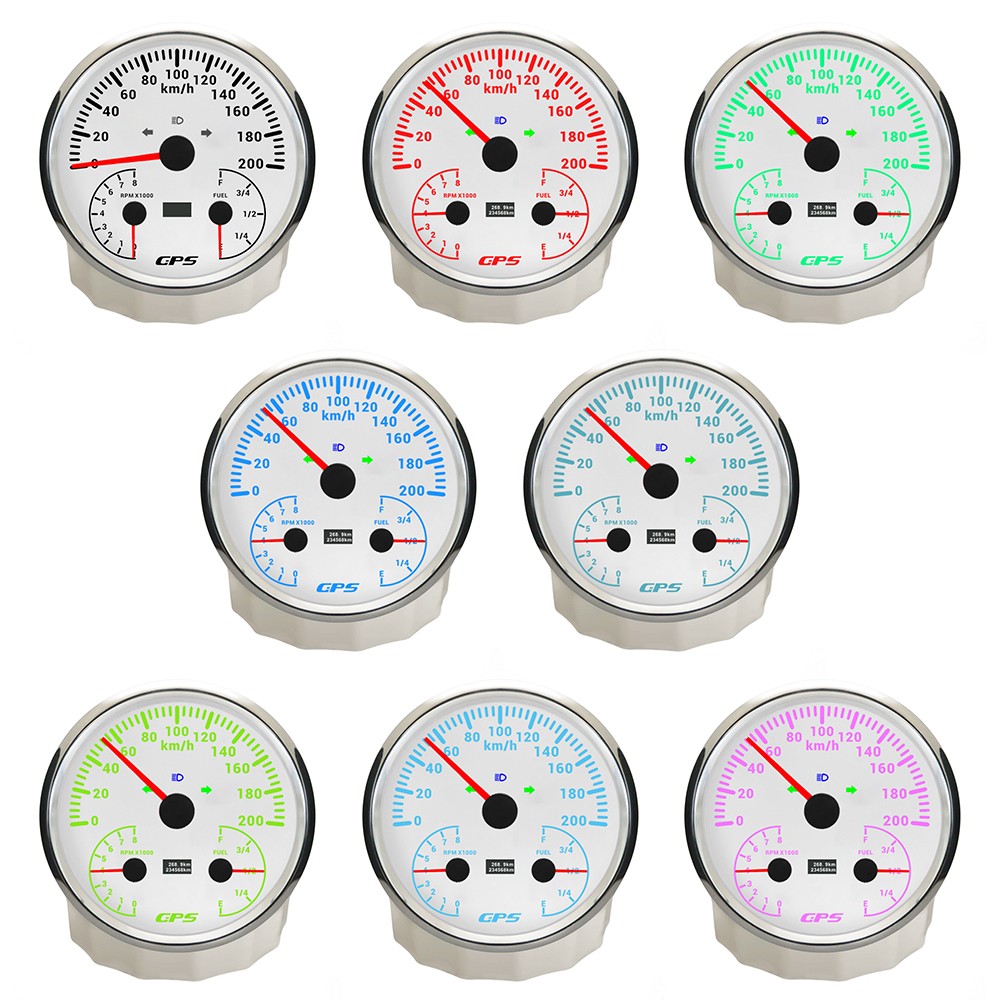

-Backlight: 7 backlights available (Red, Green, Blue, White, Yellow, Cyan, Purple)
-Working temperatures: - 40 to 85 °C
-Operating mode: LCD display, stepper motor
The package includes:
1x 3-in-1 multifunctional gauge
1x GPS antenna
2x multiple socket
